dLive installed solutions


dLive brings together the best aspects of audio management systems and live mixing consoles to create a complete audio solution for today’s multi-purpose facilities. From background music and presentations through to large scale live performances, the dLive system handles every aspect of audio life for schools and colleges, houses of worship, arts centres and more. The comprehensive dLive range provides the installer with the toolkit to create scalable, distributed, integrated systems, plus the control options to suit everyone from the casual user to the experienced audio engineer.



DISTRIBUTED

dLive frees you to deploy audio wherever it’s needed. The system is capable of providing dozens of audio points and hundreds of system inputs and outputs via a family of AudioRacks. These AudioRacks range from portable stageboxes to fixed format wall panels to fit a wide variety of applications. AudioRacks can be deployed in Star and Cascade topologies. Connections are Ethernet Layer 2, meaning up to 100m of CAT cable each, and can be converted into fibre optics.

SCALABLE

A dLive system can provide anything from 0 to 800+ total system inputs and outputs, with over half a million crosspoints. Add support for up to 96 remote controllers, and you can see why dLive is the solution for any venue; from single rooms to the largest and most demanding of spaces.

INTEGRATED

With up to five 128 channel I/O ports, support for all major industry standard protocols, GPIO interfaces and a comprehensive TCP/IP control protocol, dLive is the most integrated mixing system on the market.

dLive is fully equipped to meet modern venues’ demands for sophisticated audio networking and integration capabilities, including Dante integration,  broadcast feeds, multitrack recording, fibre links, third party control and more.

UNRIVALLED

dLive is not just another sound management system.

Built on our acclaimed XCVI 96kHz FPGA processing and boasting a system latency of <0.7ms,
dLive’s audio quality has no equal in its class.



ACCESSIBLE

A dLive system is designed around the user, not the technology. Configurable IP remote controllers give tailored access to essential elements such as volume control, music source selection or preset recall.

Director software and iPad apps make it easy to access settings on the move. With an extensive set of user permissions for up 10 user profiles, access can be restricted to block critical settings and make life easier for non-technical operators.

Example Applications

Broadcast

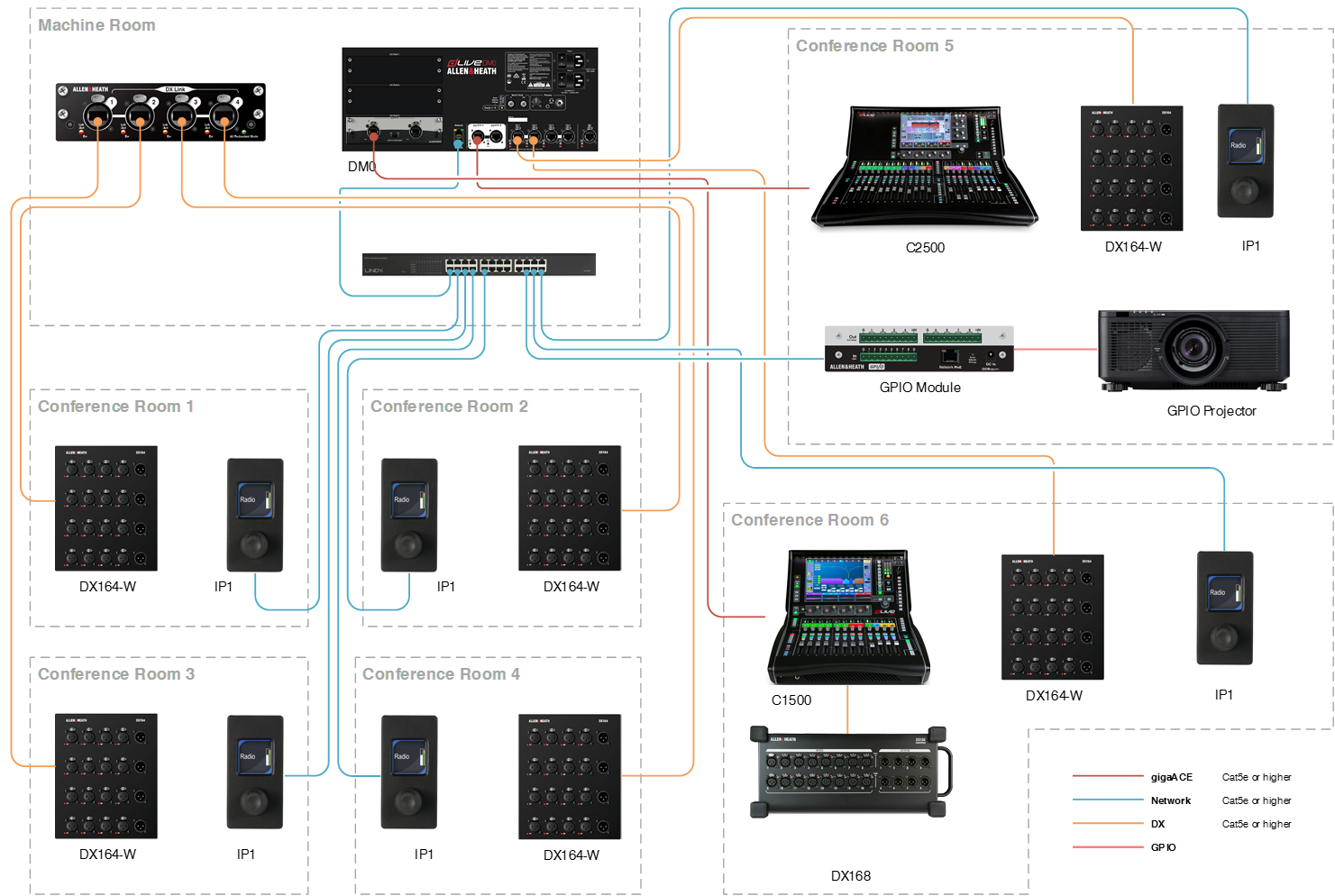

Conference
